803 MODEL/HEATSINK

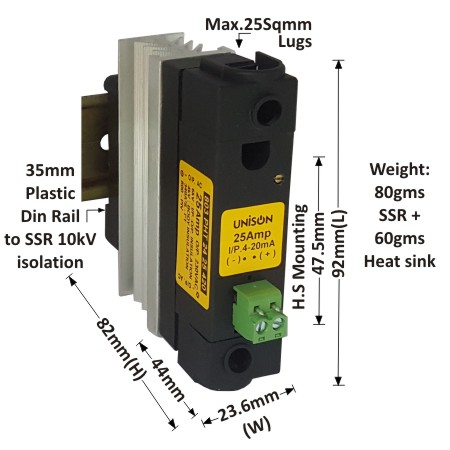

25 AMP SSR LOAD CURRENT @ 40°C
V-87 18 Amp
B-24 20 Amp

UNI 803 PHT 24 25 420 + V-87 HEAT SINK + DIN RAIL

Slim width 23.6 mm design

Thyristor controller (Phase Angle control SSR)

Input : 4 to 20mA. Separate order for 0-10VDC

Input impedance <100E for Input 4-20 mA

Input impedance 560 Ω for Input 0-10VDC

Output : 230VAC or 440VAC (47-63 Hz), 25 Amp

PIV : 800Vpk, I²T : 340A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

UNI 803 PHT 24 25 420 + V-87 HEAT SINK + DIN RAIL

SPECIFICATION DATASHEET DRAWING
Product Sharing :
803 MODEL/HEATSINK

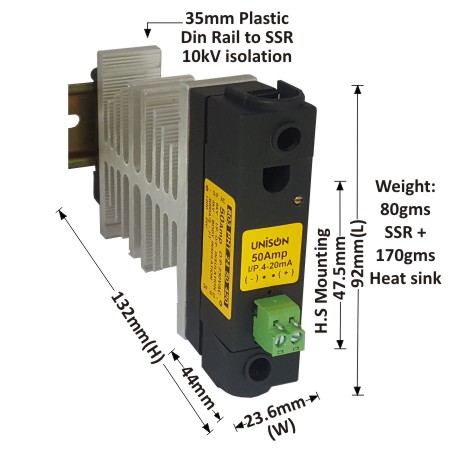

50 AMP SSR LOAD CURRENT @ 40°C
V-87 22 Amp
B-24 30 Amp
B-48 16 A x 2 = 32 Amp
B-72 16 A x 3 = 48 Amp

UNI 803 PHT 24 50 420 + B-24 HEAT SINK + DIN RAIL

Slim width 23.6 mm design

Thyristor controller (Phase Angle control SSR)

Input : 4 to 20mA/<100E or 0-10 VDC/560 Ω

Output : 230VAC or 440VAC (47-63 Hz), 50 Amp

PIV : 1200Vpk, I²T : 3000A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 15 A SC protect by 16 A DP MCB

UNI 803 PHT 24 50 420 + B-24 HEAT SINK + DIN RAIL

SPECIFICATION DATASHEET DRAWING
Product Sharing :
803 MODEL/HEATSINK

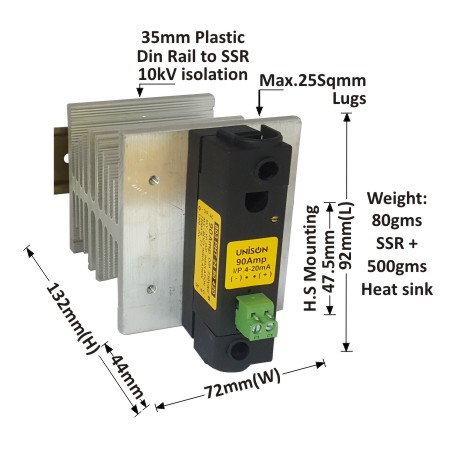

90 AMP SSR LOAD CURRENT @ 40°C
B-24 34 Amp
B-48 18 A x 2 = 36 Amp
B-72 20 A x 3 = 60 Amp
B-96 20 A x 4 = 80 Amp
A-190 Heat Sink without Fan 36 A x 3 = 108 Amp
A-190 Heat Sink with Fan 40 A x 3 = 120 Amp

UNI 803 PHT 24 90 420 + B-72 HEAT SINK + DIN RAIL

Input : 4 to 20mA or 0-10VDC

Output : 230VAC/440VAC (47-63 Hz), 90 Amp

PIV : 1200Vpk, I²T : 7200A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Phase Angle control SSR

No need to use semiconductor Fuse

Short Circuit Protection by “B” Curve DP MCB

63Amp Load Current/63Amp “B” Curve DP MCB

Short Circuit Current Rating : 10kA for <3mS

UNI 803 PHT 24 90 420 + B-72 HEAT SINK + DIN RAIL

SPECIFICATION DATASHEET DRAWING
Product Sharing :
803 MODEL/HEATSINK

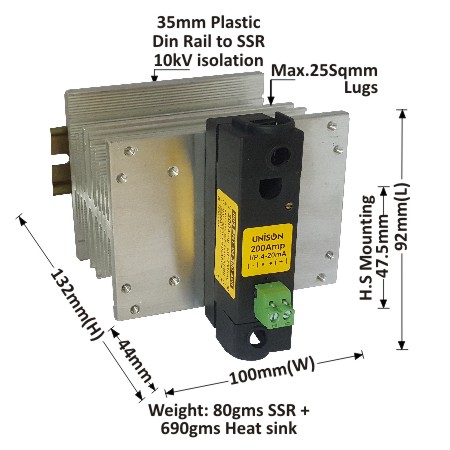

200 AMP SSR LOAD CURRENT @ 40°C
B-72 63 Amp
B-96 80 Amp
A-190 Heat Sink without Fan 44 A x 3 = 132 Amp
A-190 Heat Sink with Fan 52 A x 3 = 156 Amp

UNI 803 PHT 24 200 420 + A-100 HEAT SINK + DIN RAIL

Input : 4 to 20mA or 0-10VDC

Output : 230VAC/440VAC (47-63 Hz), 200 Amp

PIV : 1200Vpk, I²T : 25000A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Phase Angle control SSR

No need to use semiconductor Fuse

Short Circuit Protection by “B” Curve DP MCB

115Amp Load Current/125Amp “B” Curve DP MCB

Short Circuit Current Rating : 10kA for <3mS

UNI 803 PHT 24 200 420 + A-100 HEAT SINK + DIN RAIL

SPECIFICATION DATASHEET DRAWING
