SLIM RANDOM DC TO AC SSR (UL APPROVED)

Home  MODEL 803 - 23.6MM  SLIM RANDOM DC TO AC SSR (UL APPROVED)
Back
    Current name
  • MODEL 901 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ZERO CROSS OVER AC TO AC SOLID STATE RELAY (UL APPROVED)
    • RANDOM DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ANALOG PHASE ANGLE CONTROL SSR (UL APPROVED)
    • PHASE ANGLE CONTROLLER BY POT
  • MODEL 901 THYRISTOR CONTROLLER
    • SCR POWER CONTROLLER
    • BURST FIRE CONTROL SSR
  • MODEL 901 TEMPERATURE CONTROLLER
    • MODBUS TEMP CONTROL HEAT ONLY SSR
    • MODBUS TEMP CONTROL HEAT & COOL SSR
  • MODEL 803 - 23.6MM
    • ZERO CROSS OVER SLIM DC TO AC SSR (UL APPROVED)
    • ZERO CROSS OVER SLIM AC TO AC SOLID STATE RELAY
    • SLIM RANDOM DC TO AC SSR (UL APPROVED)
    • SLIM ANALOG PHASE ANGLE CONTROL SSR
    • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • FAULT DETECTION DC TO AC SSR
  • MODEL 905 - 3PH
    • 3 PHASE DC TO AC SSR
    • 3 PHASE UNIVERSAL TO AC SSR
    • 3 PH FW/REV DC TO AC SSR
    • 3 PH FW/REV UNI TO AC SSR
    • 3 PH FW/REV DC TO AC OVER LOAD SSR
  • PCB MOUNTED RELAY
    • MODEL 703
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 704
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 802
      • SLIM DC TO AC SOLID STATE RELAY
      • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 806
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 807
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 801/808
    • MODEL 801
      • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
      • 3 PHASE DC TO AC SSR
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 808
      • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • SSR INTERFACE CARD
    • MODEL 909
      • SHORT CIRCUIT PROTECT DC TO DC SSR CARD
    • MODEL 806
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 703
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 905
      • SCANNER CARD
    • MODEL 710
      • LINEAR CURRENT TRANSFORMER (C.T.)
  • HEAT SINK SUITABLE
    • MODEL 901/801
    • MODEL 803
    • MODEL 905
    • MODEL 807
    • MODEL 808
  • 25A
  • 40A
  • 50A
  • 90A
803 MODEL/HEATSINK

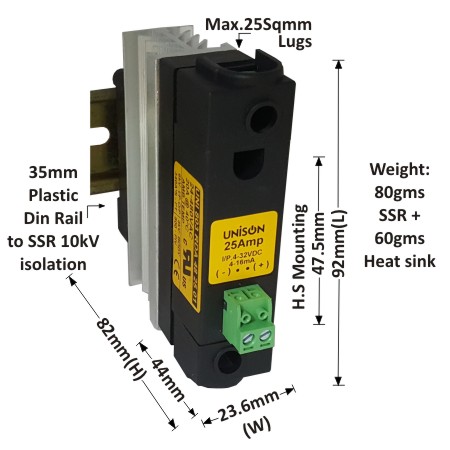

25 AMP SSR LOAD CURRENT @ 40°C
V-87 18 Amp
B-24 20 Amp

UNI 803 RDA 48 25 01 + V-87 HEAT SINK + DIN RAIL

Slim width 23.6 mm design

Input : 4-32VDC/4-16mA

Input RED LED Indication

Output : 24-480(47-63 Hz), 25 Amp

Instant Switching (Random SSR) design

PIV : 800, I²T : 340A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Long life cycle Upto 10¹¹ cycles

UNI 803 RDA 48 25 01 + V-87 HEAT SINK + DIN RAIL

SPECIFICATION DATASHEET DRAWING
Product Sharing :
803 MODEL/HEATSINK

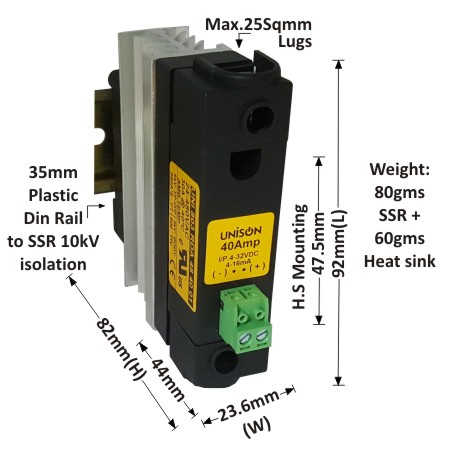

40 AMP SSR LOAD CURRENT @ 40°C
V-87 20 Amp
B-24 30 Amp

UNI 803 RDA 48 40 01 + V-87 HEAT SINK + DIN RAIL

Input : 4-32VDC/4-16mA

Input LED Indication

Output : 24-480(47-63 Hz), 40 Amp

PIV : 800, I²T : 880A²S for 9.6mS

23.6mm Slim width SSR

Random Switching

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Long life cycle . Up to 10¹¹ cycles

Inbuilt transient voltage suppressor.

UNI 803 RDA 48 40 01 + V-87 HEAT SINK + DIN RAIL

SPECIFICATION DATASHEET DRAWING
Product Sharing :
803 MODEL/HEATSINK
50 AMP SSR LOAD CURRENT @ 40°C
V-87 22 Amp
B-24 30 Amp
B-48 16 A x 2 = 32 Amp
B-72 40 Amp

UNI 803 RDA 58 50 01 + B-24 HEAT SINK + DIN RAIL

Slim width 23.6 mm design

Input : 4-32VDC/4-16mA, Input RED LED Indication

Output : 24-580VAC (47-63 Hz), 50 Amp

Instant Switching (Random SSR) design

PIV : 1400, I²T : 3000A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 8kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 15 A SC protect by 16 A DP MCB

UNI 803 RDA 58 50 01 + B-24 HEAT SINK + DIN RAIL

SPECIFICATION DATASHEET DRAWING
Product Sharing :
803 MODEL/HEATSINK

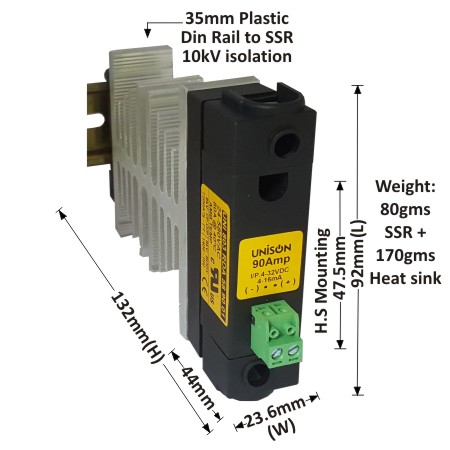

90 AMP SSR LOAD CURRENT @ 40°C
B-24 34 Amp
B-48 18 A x 2 = 36 Amp
B-72 20 A x 3 = 60 Amp
B-96 20 A x 4 = 80 Amp
A-190 Heat Sink without Fan 36 A x 3 = 108 Amp
A-190 Heat Sink With Fan 40 A x 3 = 120 Amp

UNI 803 RDA 58 90 01 + B-24 HEAT SINK + DIN RAIL

Input : 4-32VDC/4-16mA

Input LED Indication

Output : 24-580(47-63 Hz), 90 Amp

PIV : 1400, I²T : 7200A²S for 9.6mS

Random Switching

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 8kV for 1min

Short Circuit Protection by “B” Curve DP MCB

63Amp Load Current/63Amp “B” Curve DP MCB

Short Circuit Current Rating : 10kA for <3mS

UNI 803 RDA 58 90 01 + B-24 HEAT SINK + DIN RAIL

SPECIFICATION DATASHEET DRAWING
Product Sharing :
