90A
200A
| 901 MODEL / HEATSINK | 90 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| B-48 | 36 Amp |
| B-72 | 60 Amp |
| A-100 | 65 Amp |
| A-190 Heat Sink without Fan | 36 A x 3 = 108 Amp |
| A-190 Heat Sink with Fan | 40 A x 3 = 120 Amp |

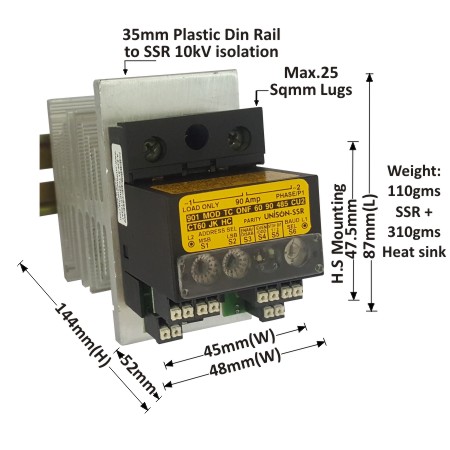

UNI 901 MOD TC ONF 60 90 485 CU2 CT60 JK HC
90 Amp Communication SSR, Temperature controller, SSR with inbuilt Temperature controller, Temperature control SSR, RS 485 MODBUS SSR, Inbuilt PID SSR, Temperature display SSR, SSR communication with HMI PLC, Smart SSR, Module SSR, Solid State Relays, SSR, SSRs and Heatsink
Temp Controller with Normal PID+Fuzzy Control+
2 Degree of freedom+Adaptive Control (Heat+Cool)
Interact to HMI or PLC on Modbus RTU 485 protocol
Select J or K TC (RTD optional), CJC in the SSR
247 nos. HEX address selection on SSR by 2 switch
Baud rate: 9600/19200/57600/115200 bps by switch
Parity On/Off, Even/Odd, Stop bit 1/2 by switch
Ext. CT for Current & Load failure indication
O/p 24-600VAC/47-63Hz/ 90 Amp/ Zero cross over
All input isolated, RS485 as per IEC 61000 STD.
UNI 901 MOD TC ONF 60 90 485 CU2 CT60 JK HC
90 Amp Communication SSR, Temperature controller, SSR with inbuilt Temperature controller, Temperature control SSR, RS 485 MODBUS SSR, Inbuilt PID SSR, Temperature display SSR, SSR communication with HMI PLC, Smart SSR, Module SSR, Solid State Relays, SSR, SSRs and Heatsink
| 901 MODEL / HEATSINK | 200 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| A-100 | 80 Amp |
| A-190 Heat Sink without Fan | 44 A x 3 = 132 Amp |
| A-190 Heat Sink with Fan | 52 A x 3 = 156 Amp |

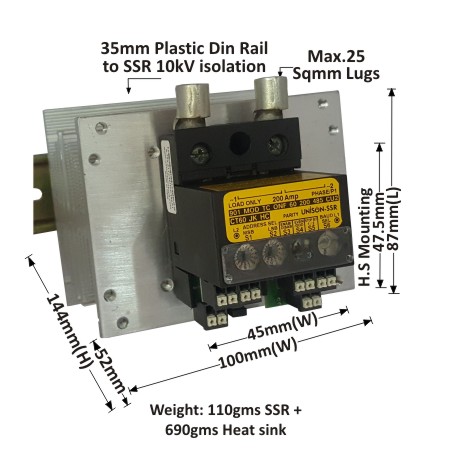

UNI 901 MOD TC ONF 60 200 485 CU2 CT60 JK HC
200 Amp Communication SSR, Temperature controller, SSR with inbuilt Temperature controller, Temperature control SSR, RS 485 MODBUS SSR, Inbuilt PID SSR, Temperature display SSR, SSR communication with HMI PLC, Smart SSR, Module SSR, Solid State Relays, SSR, SSRs and Heatsink
Temp Controller with Normal PID+Fuzzy Control+
2 Degree of freedom+Adaptive Control (Heat+Cool)
Interact to HMI or PLC on Modbus RTU 485 protocol
Select J or K TC (RTD optional), CJC in the SSR
247 nos. HEX address selection on SSR by 2 switch
Baud rate: 9600/19200/57600/115200 bps by switch
Parity On/Off, Even/Odd, Stop bit 1/2 by switch
Ext. CT for Current & Load failure indication
O/p 24-600VAC/47-63Hz/ 90 Amp/ Zero cross over
All input isolated, RS485 as per IEC 61000 STD.
UNI 901 MOD TC ONF 60 200 485 CU2 CT60 JK HC
200 Amp Communication SSR, Temperature controller, SSR with inbuilt Temperature controller, Temperature control SSR, RS 485 MODBUS SSR, Inbuilt PID SSR, Temperature display SSR, SSR communication with HMI PLC, Smart SSR, Module SSR, Solid State Relays, SSR, SSRs and Heatsink
