Suitable for Model 901-1 Nos. & Model 808-1 Nos.

Current upto 26Amp @40°C

Thermal Resistance RθSA = 2.5°C/W,

RθSA = 275.65 K/W, ΔT= 75°C

Surface Area : 491mm²X68mm = 33388 mm³

35mm Plastic Din Rail for 10kV Isolation

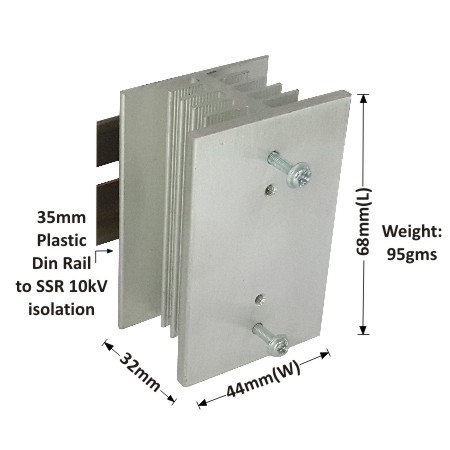

Heat sink size : 44mm(W) X 68mm(L) X 32mm(H)

Weight : @ 95gms

Suitable for Model 803-1Nos.

Current upto 22Amp @40°C

Thermal Resistance RθSA =2.45°C/W,

RθSA = 275.6 K/W, ΔT= 75°C

Surface Area : 248mm²X87mm = 21576mm³

35mm Plastic Din Rail for 10kV Isolation

Heat sink size : 24mm(W) X 87mm(L) X 30mm(H)

Weight : @ 60gms

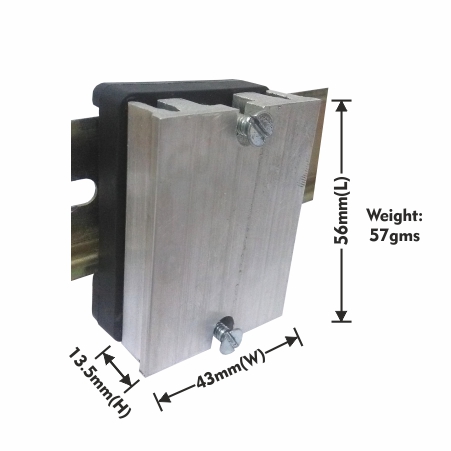

Suitable for Model 807-1Nos.

Current upto 8Amp @40°C

Thermal Resistance RθSA =6.8°C/W,

RθSA = 279.95 K/W, ΔT= 75°C

Surface Area : 491mm²X30mm = 6137.5mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 12.5mm(W) X 44mm(L) X 32mm(H)

Weight : @ 40gms

Suitable for Model 808-1Nos.

Current upto 15Amp @40°C

Thermal Resistance RθSA =3.59°C/W,

RθSA = 276.24 K/W, ΔT= 75°C

Surface Area : 491mm²X30mm = 14730mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 30mm(W) X 44mm(L) X 32mm(H)

Weight : @ 40gms

Suitable for Model 901-1 Nos. & Model 803-2 Nos.

Current upto 36Amp @40°C

Thermal Resistance RθSA = 1.17°C/W,

RθSA = 274.32 K/W, ΔT= 75°C

Surface Area : 2630mm²X48mm = 126240mm³

35mm Plastic Din Rail to SSR 10kV Isolation

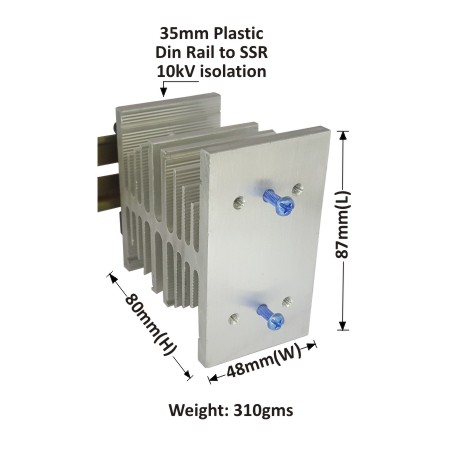

Heat sink size : 48mm(W) X 87mm(L) X 80mm(H)

Weight : @ 310gms

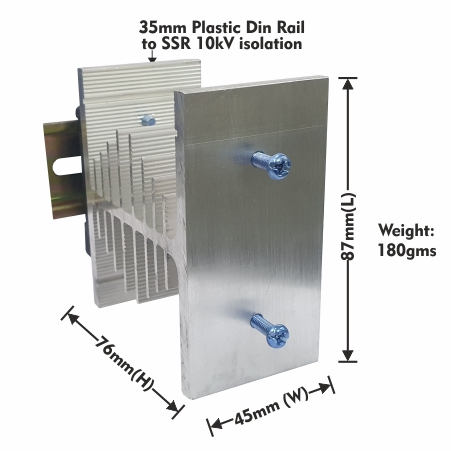

Suitable for Model 803-1No.

Current upto 30Amp @40°C

Thermal Resistance RθSA =1.8°C/W,

RθSA = 274.95 K/W, ΔT= 75°C

Surface Area : 2630mm²X24mm = 63120mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 24mm(W) X 87mm(L) X 80mm(H)

Weight : @ 170gms

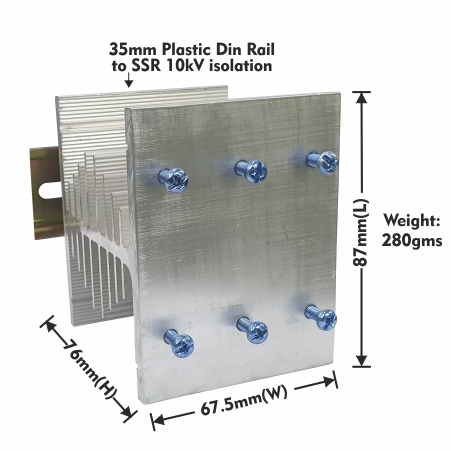

Suitable for Model 803-3Nos. & Model 901-1No.

Current upto 60Amp @40°C

Thermal Resistance RθSA =0.85°C/W,

RθSA = 274 K/W, ΔT= 75°C

Surface Area : 2630mm²X72mm = 189360mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 72mm(W) X 87mm(L) X 80mm(H)

Weight : @ 500gms

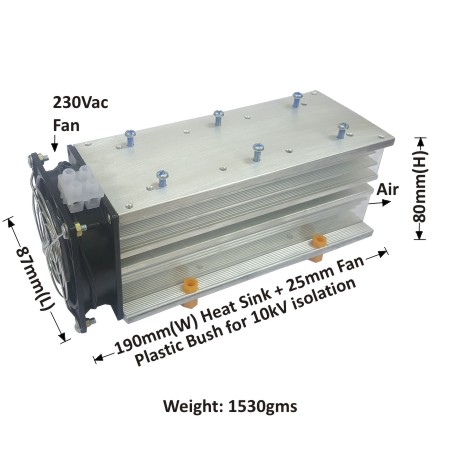

Suitable for Model 803-4Nos.

Current upto 80Amp @40°C

Thermal Resistance RθSA =0.68°C/W,

RθSA = 273.83 K/W, ΔT= 75°C

Surface Area : 2630mm²X96mm = 252480mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 96mm(W) X 87mm(L) X 80mm(H)

Weight : @ 660gms
