MODEL 801
- MODEL 901 - 45MM
- ZERO CROSS OVER DC TO AC SOLID STATE RELAY (UL APPROVED)
- ZERO CROSS OVER AC TO AC SOLID STATE RELAY (UL APPROVED)
- RANDOM DC TO AC SOLID STATE RELAY (UL APPROVED)
- ANALOG PHASE ANGLE CONTROL SSR (UL APPROVED)
- PHASE ANGLE CONTROLLER BY POT
- MOSFET DC TO DC SOLID STATE RELAY
- IGBT DC TO DC SOLID STATE RELAY
- MODEL 901 THYRISTOR CONTROLLER
- MODEL 901 TEMPERATURE CONTROLLER
- MODEL 803 - 23.6MM
- MODEL 101 - 45MM
- MODEL 102 - 2 CHANNEL - 22.5 MM X 2 NOS.
- MODEL 905 - 3PH
- PCB MOUNTED RELAY
- MODEL 801/808
- SSR INTERFACE CARD
- HEAT SINK SUITABLE
25A
40A
15A
25A
14A
100A
25
40
| 801 MODEL / HEATSINK | 25 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| G-68 | 20 Amp |
UNI 801 ZDA 48 25 01 + G-68 HEAT SINK + DIN RAIL
25 Amp DC to AC Solid State Relay, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 24-480(47-63 Hz), 25 Amp
PIV : 800, I²T : 340A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 4kV for 1min
I/P. to O/P. insulation : 6kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
UNI 801 ZDA 48 25 01 + G-68 HEAT SINK + DIN RAIL
25 Amp DC to AC Solid State Relay, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 801 MODEL / HEATSINK | 40 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| G-68 | 22 Amp |
| B-48 | 32 Amp |
UNI 801 ZDA 48 40 01 + G-68 HEAT SINK + DIN RAIL
40 Amp DC to AC Solid State Relay, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 24-480(47-63 Hz), 25 Amp
PIV : 800, I²T : 880A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 4kV for 1min
I/P. to O/P. insulation : 6kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
| 801 MODEL / HEATSINK | 15 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| G-68 | 10 Amp |
UNI 801 PMDD 200 15 01 + G-68 HEAT SINK + DIN RAIL
15 Amp DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
DC Output Switching SSR - POWER MOSFET
Input : 3-32 VDC, 4-20mA
Input Green LED Indication
Output : 5-200VDC, 15 Amp
Body insulation : 2.5kV for 1min
I/P. to O/P. insulation : 2.5kV for 1min
ON State Voltage Drop : ≤1Vdc
Turn ON time : 2.5 mS
Turn OFF time : 40 μS
No Leakage Current at output side
UNI 801 PMDD 200 15 01 + G-68 HEAT SINK + DIN RAIL
15 Amp DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 801 MODEL / HEATSINK | 25 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| G-68 | 15 Amp |
| B-48 | 20 Amp |
UNI 801 PMDD 200 25 01 + G-68 HEAT SINK + DIN RAIL
25 Amp DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
DC Output Switching SSR - POWER MOSFET
Input : 7.5-32 VDC, 4-20mA
Input Green LED Indication
Output : 5-200VDC, 25 Amp
Body insulation : 2.5kV for 1min
I/P. to O/P. insulation : 2.5kV for 1min
ON State Voltage Drop : ≤1Vdc
Turn ON time : 2.5 mS
Turn OFF time : 40 μS
No Leakage Current at output side
UNI 801 PMDD 200 25 01 + G-68 HEAT SINK + DIN RAIL
25 Amp DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 801 MODEL / HEATSINK | 14 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| G-68 | 10 Amp |
801 PMDD 500 14 00 + G-68 HEAT SINK + DIN RAIL
14 Amp DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
DC Output Switching SSR - POWER MOSFET
Input : 7.5-32 VDC, 4-20mA
Input Green LED Indication
Output : 5-500VDC, 14 Amp
Body insulation : 2.5kV for 1min
I/P. to O/P. insulation : 2.5kV for 1min
ON State Voltage Drop : ≤1.8Vdc
Turn ON time : 2.5 mS
Turn OFF time : 40 μS
No Leakage Current at output side
801 PMDD 500 14 00 + G-68 HEAT SINK + DIN RAIL
14 Amp DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 801 MODEL / HEATSINK | 100 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| B-48 | 45 Amp |
UNI 801 PMDD 55 100 01 + B-48 HEAT SINK + DIN RAIL
100 Amp DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
DC Output Switching SSR - POWER MOSFET
Input : 7.5-32 VDC, 4-20mA
Input Green LED Indication
Output : 5-500VDC, 100 Amp
Body insulation : 2.5kV for 1min
I/P. to O/P. insulation : 2.5kV for 1min
ON State Voltage Drop : ≤0.5Vdc
Turn ON time : 2.5 mS
Turn OFF time : 40 μS
No Leakage Current at output side
UNI 801 PMDD 55 100 01 + B-48 HEAT SINK + DIN RAIL
100 Amp DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 801 3PH MODEL / HEATSINK | 25 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| G-68 | 6 Amp X 3 = 18 Amp |

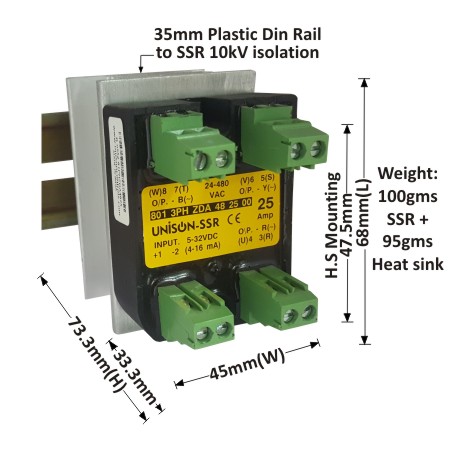

UNI 801 3PH ZDA 48 25 00 + G-68 HEAT SINK + DIN RAIL
25 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Three phase SSR output in compact size
Suitable for motor/blower application
Input : 5-32VDC/4-16mA, Green LED indication
Output : 24-480(47-63 Hz), 25 Amp
PIV : 800, I²T : 340A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 4kV for 1min
I/P. to O/P. insulation : 4kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
UNI 801 3PH ZDA 48 25 00 + G-68 HEAT SINK + DIN RAIL
25 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 801 3PH MODEL / HEATSINK | 40 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| G-68 | 6 Amp X 3 = 18 Amp |
| B-48 | 8 Amp X 3 = 24 Amp |

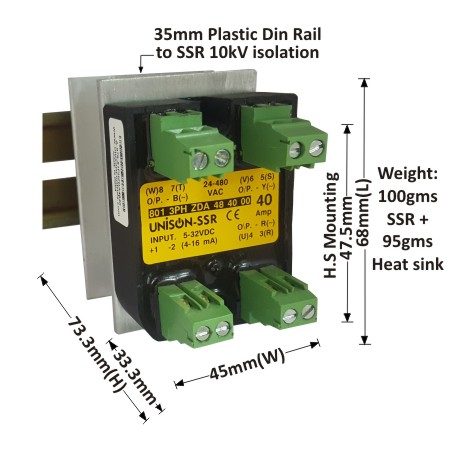

UNI 801 3PH ZDA 48 40 00 + G-68 HEAT SINK + DIN RAIL
40 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Three phase SSR output in compact size
Suitable for motor/blower application
Input : 5-32VDC/4-16mA, Green LED Indication
Output : 24-480(47-63 Hz), 40 Amp
PIV : 800, I²T : 880A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 4kV for 1min
I/P. to O/P. insulation : 6kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
UNI 801 3PH ZDA 48 40 00 + G-68 HEAT SINK + DIN RAIL
40 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
