- SSR INTERFACE CARD
- HEAT SINK SUITABLE
04CH
08CH
04CH
02CH
08CH
06CH
04CH
02CH

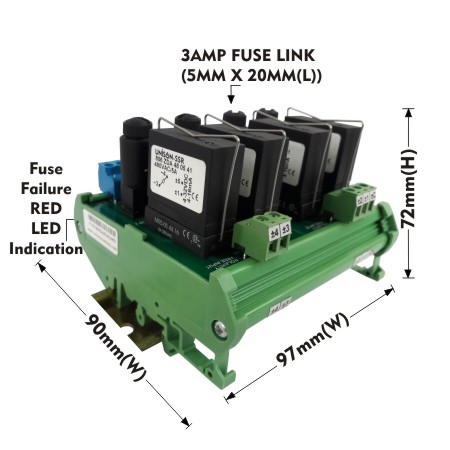

UNI 806 ZDA 48 05 41 - 4CH CARD
5 Amp DC to AC SSR Card, Interface Relay Card with Fuse, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module
Polarity Free Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 24-480VAC (47-63 Hz), 5 Amp (04CH)
02, 04, 06, 08 channel card available
3A Replaceable Fuse failure / RED LED indication
I/P. to O/P. insulation : 3kV for 1min
PIV : 800 Vpk | Zero Cross Over SSR
N/O Configuration only
Direct replacement to mechanical relay
Plug in type input and output terminals
UNI 806 ZDA 48 05 41 - 4CH CARD
5 Amp DC to AC SSR Card, Interface Relay Card with Fuse, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module

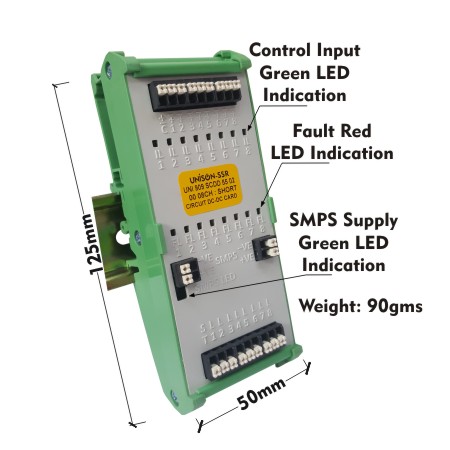

UNI 909 SCDD 55 02 00 08CH
2 Amp Advance DC to DC short circuit protection card, Interface Relay Card, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC Relay Card Module, Pneumatic Valve ON/OFF SSR, 2 Channel DC Relay Module, 4 Channel DC Relay Module and 8 Channel DC Relay Module
DC O/P. SSR (MOSFET) with Short Circuit Protection
Input: 3-32 VDC, 2-7mA, Green LED Indication
Output: 10-55VDC, 2 Amp (8 Channel)
SMPS Supply - Green LED Indication
O/P. OFF/Fault RED LED/Remote PLC feedback when
Load Open/Short, Over Current, MOSFET/SSR Short
Turn ON time: 60 µS / Turn OFF time: 100 µS
Protective Plastic PA6 20% GF UL94 V2 grade cover
Body & I/P. to O/P. insulation: 2.5kV for 1min
Slim relay compatible width 4 channel = 50 mm (W)
UNI 909 SCDD 55 02 00 08CH
2 Amp Advance DC to DC short circuit protection card, Interface Relay Card, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC Relay Card Module, Pneumatic Valve ON/OFF SSR, 2 Channel DC Relay Module, 4 Channel DC Relay Module and 8 Channel DC Relay Module

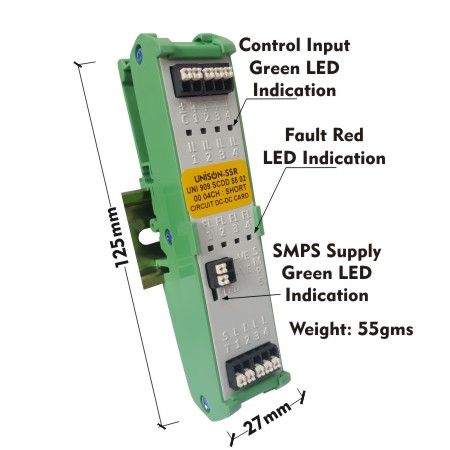

UNI 909 SCDD 55 02 00 04CH
2 Amp Advance DC to DC short circuit protection card, Interface Relay Card, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC Relay Card Module, Pneumatic Valve ON/OFF SSR, 2 Channel DC Relay Module, 4 Channel DC Relay Module and 8 Channel DC Relay Module
DC O/P. SSR (MOSFET) with Short Circuit Protection
Input: 3-32 VDC, 2-7mA, Green LED Indication
Output: 10-55VDC, 2 Amp (4 Channel)
SMPS Supply - Green LED Indication
O/P. OFF/Fault RED LED/Remote PLC feedback when
Load Open/Short, Over Current, MOSFET/SSR Short
Turn ON time: 60 µS / Turn OFF time: 100 µS
Protective Plastic PA6 20% GF UL94 V2 grade cover
Body & I/P. to O/P. insulation: 2.5kV for 1min
Slim relay compatible width 4 channel = 27 mm (W)
UNI 909 SCDD 55 02 00 04CH
2 Amp Advance DC to DC short circuit protection card, Interface Relay Card, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC Relay Card Module, Pneumatic Valve ON/OFF SSR, 2 Channel DC Relay Module, 4 Channel DC Relay Module and 8 Channel DC Relay Module
UNI 909 SCDD 55 02 00 02CH
2 Amp Advance DC to DC short circuit protection card, Interface Relay Card, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC Relay Card Module, Pneumatic Valve ON/OFF SSR, 2 Channel DC Relay Module, 4 Channel DC Relay Module and 8 Channel DC Relay Module
DC O/P. SSR (MOSFET) with Short Circuit Protection
Input: 3-32 VDC, 2-7mA, Green LED Indication
Output: 10-55VDC, 2 Amp (2 Channel)
SMPS Supply - Green LED Indication
O/P. OFF/Fault RED LED/Remote PLC feedback when
Load Open/Short, Over Current, MOSFET/SSR Short
Turn ON time: 60 µS / Turn OFF time: 100 µS
Protective Plastic PA6 20% GF UL94 V2 grade cover
Body & I/P. to O/P. insulation: 2.5kV for 1min
Slim relay compatible width 2 channel = 18 mm (W)
UNI 909 SCDD 55 02 00 02CH
2 Amp Advance DC to DC short circuit protection card, Interface Relay Card, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC Relay Card Module, Pneumatic Valve ON/OFF SSR, 2 Channel DC Relay Module, 4 Channel DC Relay Module and 8 Channel DC Relay Module

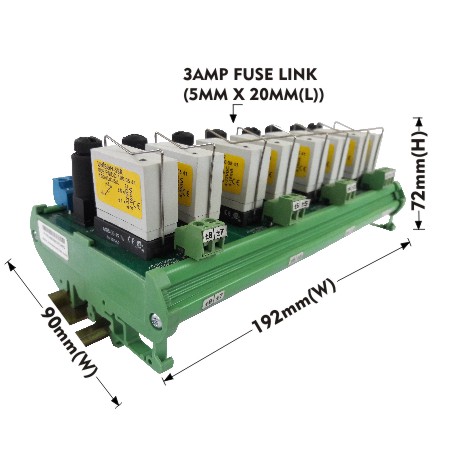

UNI 806 PMDD 100 05 41 - 8CH CARD
5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module
DC Output Switching SSR - POWER MOSFET
Polarity Free Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 5-100VDC, 5Amp. N/O Configuration only
02, 04, 06, 08 channel card available
3A Replaceable Fuse failure / RED LED indication
Turn ON time : 2.5 mS / Turn OFF time : 40 μS
Inbuilt Back EMF Diode across load
Direct replacement to mechanical relay
Plug in type input and output terminals
UNI 806 PMDD 100 05 41 - 8CH CARD
5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module

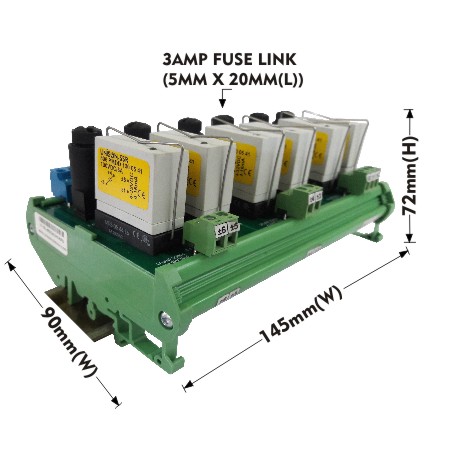

UNI 806 PMDD 100 05 41 - 6CH CARD
5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module
DC Output Switching SSR - POWER MOSFET
Polarity Free Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 5-100VDC, 5Amp. N/O Configuration only
02, 04, 06, 08 channel card available
3A Replaceable Fuse failure / RED LED indication
Turn ON time : 2.5 mS / Turn OFF time : 40 μS
Inbuilt Back EMF Diode across load
Direct replacement to mechanical relay
Plug in type input and output terminals
UNI 806 PMDD 100 05 41 - 6CH CARD
5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module

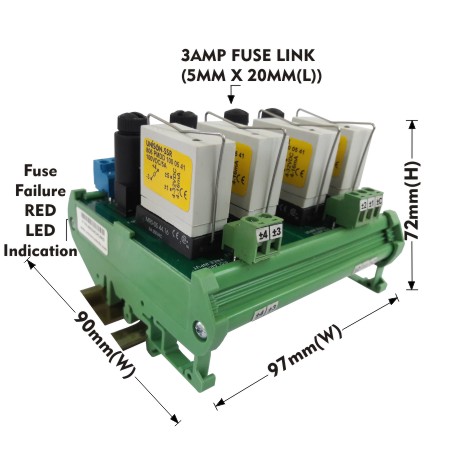

UNI 806 PMDD 100 05 41 - 4CH CARD
5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module
DC Output Switching SSR - POWER MOSFET
Polarity Free Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 5-100VDC, 5Amp. N/O Configuration only
02, 04, 06, 08 channel card available
3A Replaceable Fuse failure / RED LED indication
Turn ON time : 2.5 mS / Turn OFF time : 40 μS
Inbuilt Back EMF Diode across load
Direct replacement to mechanical relay
Plug in type input and output terminals
UNI 806 PMDD 100 05 41 - 4CH CARD
5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module

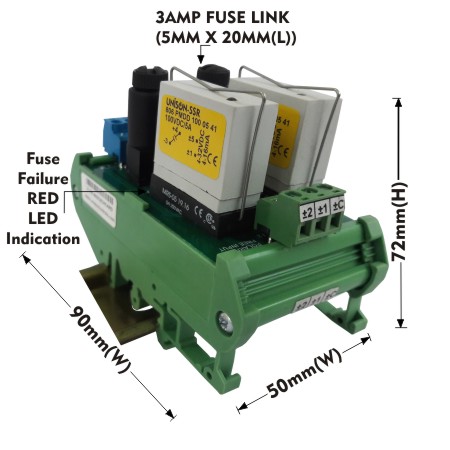

UNI 806 PMDD 100 05 41 - 2CH CARD
5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module
DC Output Switching SSR - POWER MOSFET
Polarity Free Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 5-100VDC, 5Amp. N/O Configuration only
02, 04, 06, 08 channel card available
3A Replaceable Fuse failure / RED LED indication
Turn ON time : 2.5 mS / Turn OFF time : 40 μS
Inbuilt Back EMF Diode across load
Direct replacement to mechanical relay
Plug in type input and output terminals
UNI 806 PMDD 100 05 41 - 2CH CARD
5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module
