40A
| 101 MODEL / HEATSINK | 40 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| C-56 | 18 Amp |
| G-68 | 22 Amp |
| T-45 | 30 Amp |
| B-48 | 35 Amp |

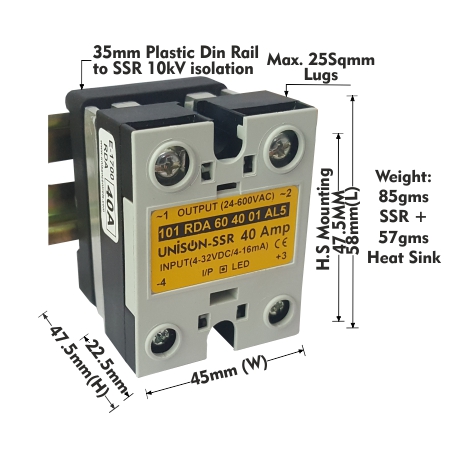

UNI 101 RDA 60 40 01 AL5 + C-56 HEAT SINK + DIN RAIL
40 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC / 4-16mA, Input Green LED Indicati
Output : 24-600VAC (47-63 Hz), 40Amp
PIV : 1600, I²T : 1060A²S for 9.6mS
Random Switching SSR design (50 μS)
Body insulation : 6kV for 1min
I/P. to O/P. insulation : 6kV for 1min
Inbuilt surge voltage protection of 2700Vrms
Long life cycle Up to 10¹¹ cycles
Short Circuit Protection by “B” Curve DP MCB
Short Circuit Current Rating : 10kA for <3mS
UNI 101 RDA 60 40 01 AL5 + C-56 HEAT SINK + DIN RAIL
40 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
