CT 0-10AMP PROPORTIONAL 0-10 VDC WITHOUT BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter
0-10 Amp Proportional 0-10 VDC ( 1 Amp = 1 VDC)
Accuracy : ±3% of Rated Value
Frequency : 47 - 63Hz
Response Time : < 150 mS
Insulation Class : 600 VRMS
Operating Temperature : -5°C to 80 °C
Ripple : 5% Max.
Self Generated : 0.2 to 10.5 VDC Max. 2mA Current
25 Sq. mm wire can be inserted in any direction
CT 0-10AMP PROPORTIONAL 0-10 VDC WITHOUT BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter

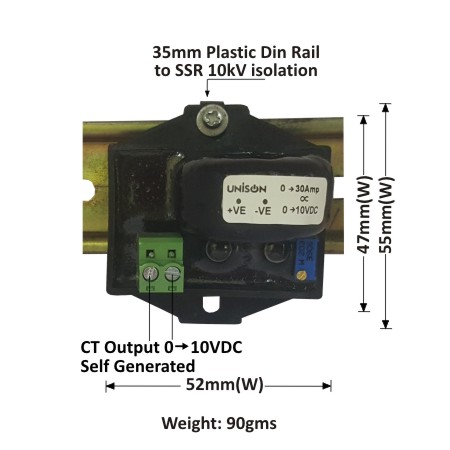

CT 0-30AMP PROPORTIONAL 0-10 VDC WITHOUT BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter
0-30 Amp Proportional 0-10 VDC ( 1 AMP = 0.33 VDC)
Accuracy : ±3% of Rated Value
Frequency : 47 - 63Hz
Response Time : < 150 mS
Insulation Class : 600 VRMS
Operating Temperature : -5°C to 80 °C
Ripple : 5% Max.
Self Generated : 0.2 to 10.5 VDC Max. 2mA Current
25 Sq. mm wire can be inserted in any direction
CT 0-30AMP PROPORTIONAL 0-10 VDC WITHOUT BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter

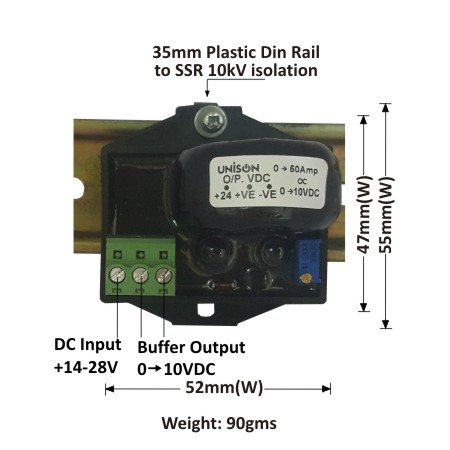

CT 0-50AMP PROPORTIONAL 0-10 VDC WITH BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter
0-50 Amp Proportional 0-10 VDC (1 AMP = 0.2 VDC)
Accuracy : ±3% of Rated Value
Frequency : 47 - 63Hz
Response Time : < 150 mS
Insulation Class : 600 VRMS
Operating Temperature : -5°C to 80 °C
Ripple : 5% Max.
Buffer I/P. Power Supply : 14 to 28 VDC Max. 10 mA
Buffer O/p. DC: 0.2 to 10.5 VDC Max. 10mA Current
25 Sq. mm wire can be inserted in any direction
CT 0-50AMP PROPORTIONAL 0-10 VDC WITH BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter

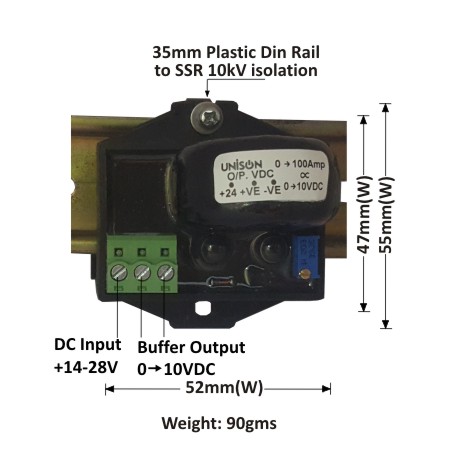

CT 0-100AMP PROPORTIONAL 0-10 VDC WITH BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter
0-100Amp Proportional 0-10VDC (1 AMP = 0.1 VDC)
Accuracy : ±3% of Rated Value
Frequency : 47 - 63Hz
Response Time : < 150 mS
Insulation Class : 600 VRMS
Operating Temperature : -5°C to 80 °C
Ripple : 5% Max.
Buffer Input Power Supply : 14 to 28 VDC Max.10 mA
Buffer O/p. DC: 0.2 to 10.5VDC Max. 10mA Current
25 Sq. mm wire can be inserted in any direction
CT 0-100AMP PROPORTIONAL 0-10 VDC WITH BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter

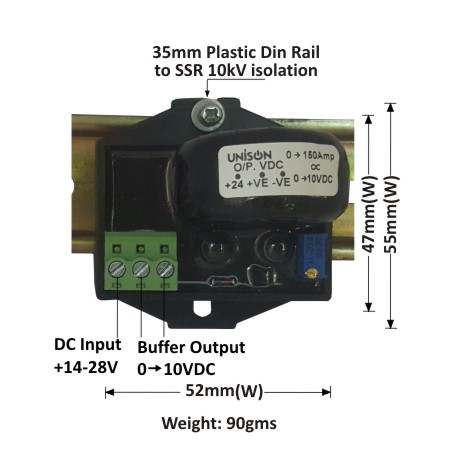

CT 0-150AMP PROPORTIONAL 0-10 VDC WITH BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter
0-150Amp Proportional 0-10VDC (1AMP=0.066VDC)
Accuracy : ±3% of Rated Value
Frequency : 47 - 63Hz
Response Time : < 150 mS
Insulation Class : 600 VRMS
Operating Temperature : -5°C to 80 °C
Ripple : 5% Max.
Buffer Input Power Supply : 14 to 28 VDC Max.10 mA
Buffer O/p. DC: 0.2 to 10.5VDC Max. 10mA Current
25 Sq. mm wire can be inserted in any direction
CT 0-150AMP PROPORTIONAL 0-10 VDC WITH BUFFER
Linear C.T. with Buffer, Linear C.T. without Buffer, Linear Current Transducer, Linear Current Transformer, Current to Linear Voltage Converter
